The changing proposals for the Paddington Health Campus scheme

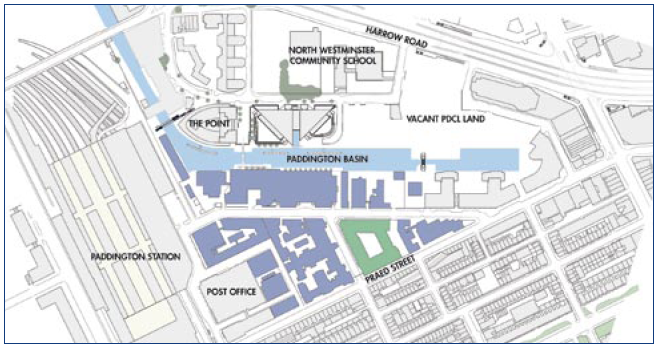

Map A: Existing site layout

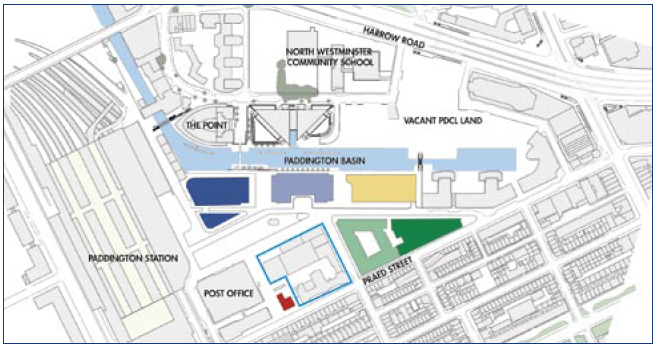

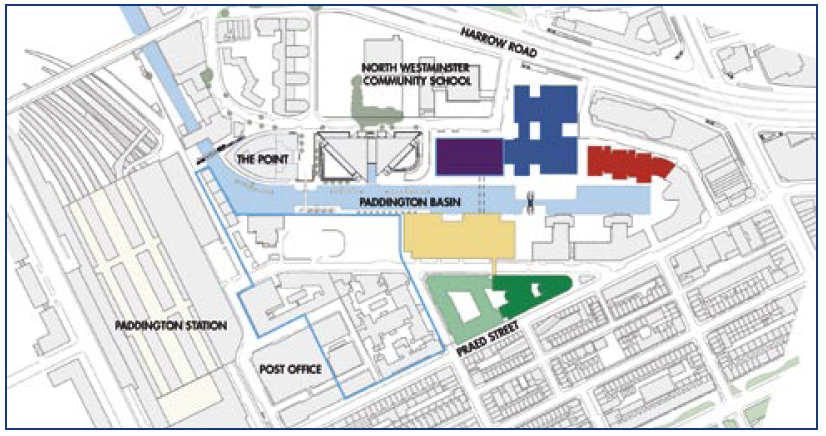

Map C: Proposed site layout - May 2003

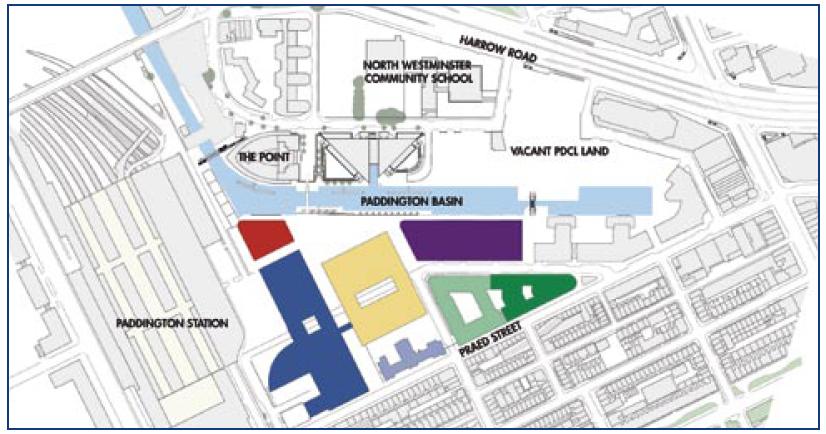

Map E: Proposed site layout - July 2004

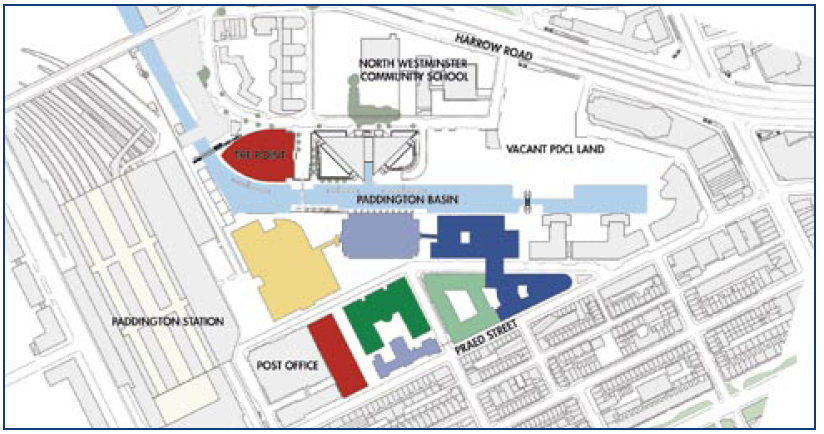

Map B: Proposed site layout - June 2000

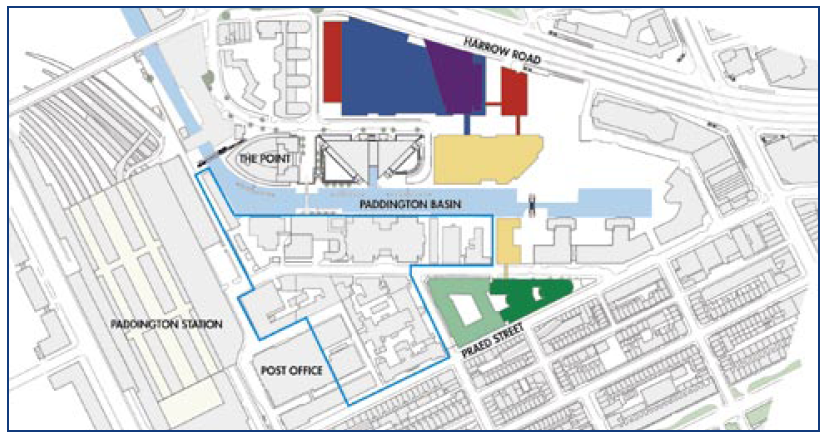

Map D: Proposed site layout - February 2004

Map F: Proposed site layout - February 2005

KEY:

Existing Imperial College buildings        Existing St Mary's NHS Trust buildings

Proposed Imperial College buildings      Proposed St Mary's NHS Trust buildings

Source: Adapted from graphics produced by Studio4 Design & Architecture

Proposed Royal Brompton & Harefield NHS Trust buildings

Proposed shared non-clinical services buildings for St Mary's and Royal Brompton & Harefield NHS Trust

Proposed buildings to be occupied by both St Mary's and Royal Brompton & Harefield NHS Trusts

Surplus site released for commercial – residential development

6

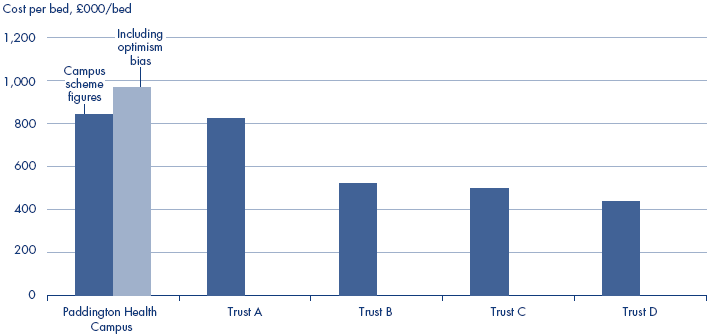

A comparison of capital construction cost per bed for major hospital builds

Source: April 2005 Campus documentation and National Audit Office addition of optimism bias

NOTE

The four comparators are major urban teaching hospital schemes on constrained sites.

7

A comparison of capital construction cost per square metre for major hospital builds

Source: April 2005 Campus documentation and National Audit Office addition of optimism bias

NOTE

The four comparators are major urban teaching hospital schemes on constrained sites.
