An effective Measurement and Verification Plan that complies with the requirements of the IPMVP would include the following non-exhaustive list of components:
> Facility and project overview
> Energy saving project intent
> Selected IPMVP Option and measurement boundary
> Baseline: period, usage and conditions
> Reporting period
> Basis for adjustment
> Calculation methodology and analysis procedure
> Energy prices
> Meter specifications
> Monitoring responsibilities
> Expected accuracy
> Budget
> Report format
> Quality assurance

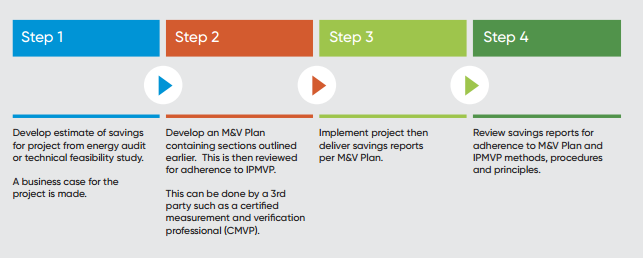

In summary, the table below outlines the steps involved in developing a project which is adherent with IPMVP.
Figure 10 Summary Measurement and Verification Plan |
|
Further information can be obtained by downloading the IPMVP Core Concepts from IPMVP - Efficiency Valuation Organization (EVO) (evo-world.org)
